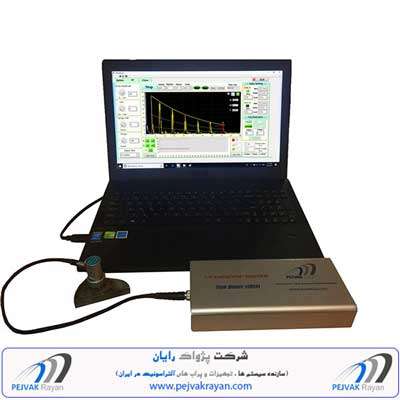

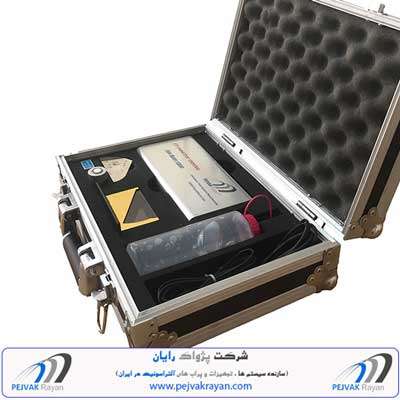

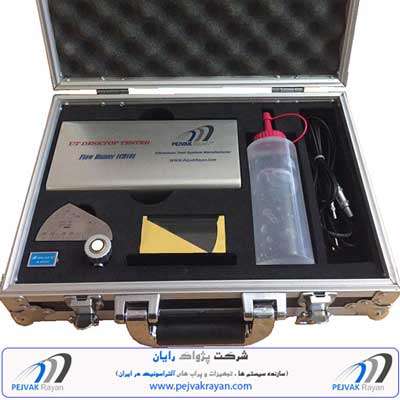

مشخصات دستگاه تست آلتراسونیک اموزشی آزمایشگاهی (دسکتاپ) (FLAW HUNTER 1CH 101)

Dimensions

210 × 100 × 36 mm

Weight

0.9 kg>

Temperature

Operating -10°C to 55°C

Warranty

Two Year warranty

PRF

100 – 1000 Hz Adjustable in 1 Hz steps

Pulser Type

Negative Spike Pulser

Pulser Power

0 – 340 Volt Adjustable in 1%

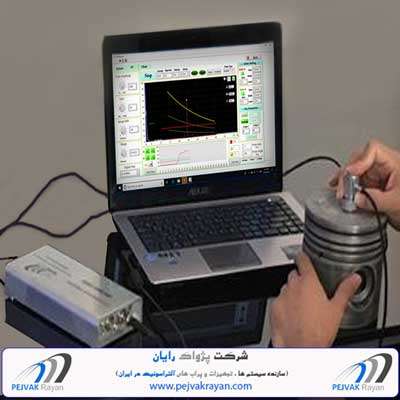

Test Mode

Pulse Echo،T/R ، Through Transmission

Damping

15, 25, 50, 200, 500 Ohm selectable

Gain Control

0 – 60 dB , Adjustable in 0.25, 0.5, 1, 10 dB steps

Rejection (grass cutter)

0 – 50% FSH  Linear reject without affecting indication amplitude

Rectification

FW, PHW, NHW, RF

Frequency Band

0.5 – 11 MHz

Filter Bands

0.5 – 4, 0.5 – 11, 2 – 8, 8 – 11MHz

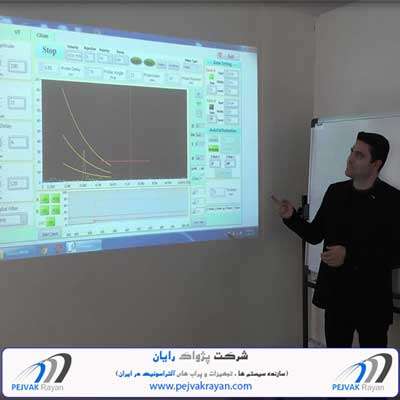

Display Mode

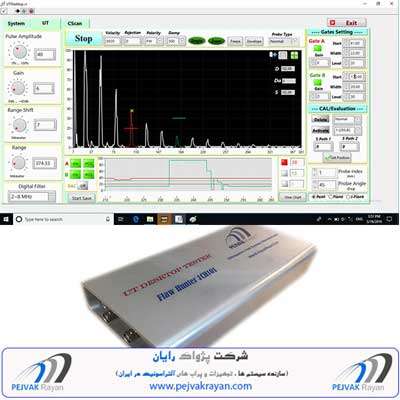

A-SCAN, B-SCAN, C-SCAN, Strip Chart

Range

0 – 1000 Micro Second

Gates

2 independent gates

Polarity of gates

Pos for peak detection, Neg for smallest signal detection

Linearity

Vertical = 0.5% (FSH) – Horizontal ±0.2% (FSW)

Transducer Connectors

Lemo 1S, BNC Selectable by purchaser

Alarms

Independent Light for Gate A, Gate B, DAC

Auto Calibration

Automated calibration of Range , Probe delay and Velocity

Zoom

Expands range and delay to cover the area set by Gate A

Peak Hold

Hold the current waveform on screen for off-line processing

Evaluations

DAC ( Up to 10 points), TCG, AWS

Measurement Modes

Peak, Flank, J.Flank

Measurement Parameters

Depth, Surface Distance, Sound Path, Velocity, Probe Delay, AWS Indication Rate, AWS Indication Class

Calibration Standard

EN12668-1 – 2010
